Tamiya F1 - 1:10 - 10 mann klare!
Tamiya F1 er en spennende klasse for de som liker modellene av disse ekstreme bilene. På vår bane er de langt fra de raskeste, men de er knallflotte å se på, og morsomme å kjøre. Kanskje dette er noe for deg? Klassen er nå i ferd med å bli etablert, og det er ca. 10 mann i klubben som har kjøpt. Flere kommer vil komme til å kjøpe seg disse bilene. Her følger litt oppdatert info om hva du bør kjøpe, hvor du får kjøpt det - og hva det koster.
Ved
Torstein Syvertsen
Oppdatert:
(17.12.2013)
Bilene er raskere en M-Chassie. Dvs. rundetid på Moss RC et sted mellom Touring og M-Chassie.Dette er vakre, klassiske biler med relativt lite justering og skruing. Jeg spår at dette blir en upcomming Old Boys klasse. Dvs. en klasse for gutta som har lært seg å kjøre - og som kjører pent uten å måtte måke seg gjennom feltet for å komme forbi. Her er det stil og passion som gjelder! Til høyre har vi Magnus og Kjell Gunnar fra Oslo som har gitt oss mange nyttige tips på vegen.
Tamiya F1 hva trengs?

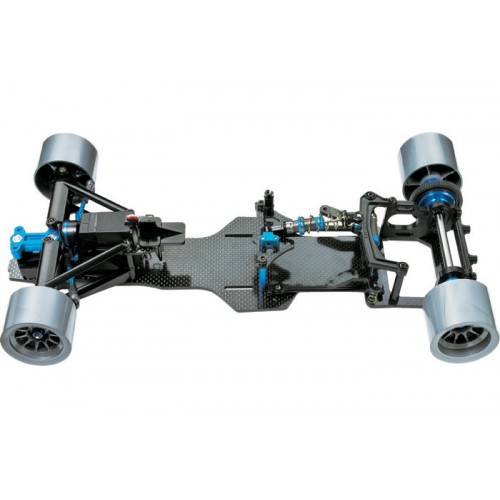

Tamiya F104 Version II Pro Chassis Kit Dark Titan Edition #93033
Den nyeste F1 bilen heter F104v2 (med link og pivot ball)
Bilen har noen ting jeg ville oppgradert under bygging.
Under bygging:
- 54351 Carbon damper mount
- 54356 Alu motor mount (inkludert i pro settet)
- 54375 Carbon rear bulkehead plate (inkludert i pro settet)
- 54215 Spurgear spacer (for å kunne bruke andre spurgear fks Kimbrought spur)
Elektronikk:
-Servo (standard/lavprofil eller mini)
-Esc/motor Speed Passion ESC og Competition V3 motor 21.5t
-Batteri Standard 2 cell lipo eller shorty pack (Anbefaler shorty pack ettersom det er lite plass under karosseri)
Videre justering/oppgradering:
(Ikke nødvendig men greit for de som har lyst på litt ekstra)
- 54413 Aluminium roll damper High efficiency (lettere justering av sidedemping)
- 54357 Ajustable metal upright f104 (Inline/trailing axel)
- 54162 Carbon Rear shaft
- 53901 TRF Special Damper f103gt (Orginal demper kan lekke litt)
- 53539 Spacer shim sett (for king-pin og høydejustering)
- 54359 Pitch spring sett
- 54352 Roll spring sett
- 50509 Front springs (med ride dekk anbefales CRC 0.45 spring)

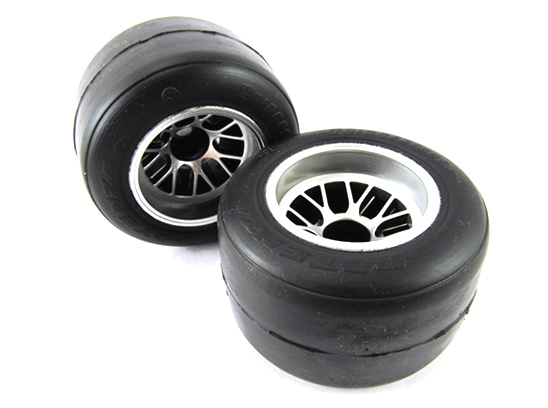

Dekk: (gummi)
Det finnes mye forskjellig f1 dekk, men i de Europeiske løpene er det Ride ferdiglimte dekk som er standarden
RIDE Front (26022)
RIDE Rear (26023)
Reserve deler:
Denne bilen går nesten ikke i stykker men kan være greit å ha litt reservedeler
- 51381 F parts Front suspension arms
- 51480 RM01 - Side links (2pcs)
- Spurgear etc: Kimbrought,xenon,kawada**
For de scala interesserte:
Det kan bestilles mange forskjellige dekaler fra F1Paintlab
http://f1paintlab.com/F1PAINTLAB/HOME.html
Tråden er plukket fra radiostyrt - og er lagt ut av Crypton
http://www.radiostyrt.no/showthread.php/61246-Formel-1?p=524411&viewfull=1#post52441
****
RC-Mart pr. 21 mars 2013
| 1 x |
Speed Passion Reventon Series Smart LED Program Card #SP000007 |
USD$19.90 |
| 1 x |
Speed Passion Reventon-R Brushless ESC 2S w/o LED program card (Laser Blue, Wireless and Sensored) # |
USD$69.90 |
| 1 x |
Speed Passion (#138215V3) Competition Motor Ver.3 (21.5R) |
USD$49.90 |
| 1 x |
Tamiya RM-01 3x31mm Titanium Coated King Pin (2pcs) #54355 |
USD$7.20 |
| 1 x |
Tamiya (#54357) F104 Adjustable Metal Upright |
USD$32.50 |
| 1 x |
Tamiya (#51381) F104 F Parts (Front Suspension Arm) |
USD$4.90 |
| 1 x |
Tamiya (#50509) F-1 Front Spring Sst |
USD$3.20 |
| 1 x |
Tamiya RM-01 Roll Spring Set #54352 |
USD$5.10 |
| 1 x |
Tamiya RM-01 Pitch Spring Set #54359 |
USD$5.10 |
| 1 x |
Tamiya Aluminum Roll Damper - High Efficiency #54413 |
USD$6.80 |
| 1 x |
Tamiya (#54162) F104 Carbon Rear Shaft |
USD$12.90 |
| 1 x |
Tamiya (#53539) Ø5.5mm Alu. Spacer Set |
USD$7.10 |
| 1 x |
Tamiya Rear Carbon Damper Mount Plate For RM01/F104 Ver.II #54351 |
USD$9.90 |
| 1 x |
Tamiya F104 Version II Pro Chassis Kit Dark Titan Edition 1:10 RC Car w/Body #93033 |
USD$207.90 |
| 1 x |
Tamiya (#54215) F104 Spur Gear Spacer |
USD$2.10 |
| 1 x |
RIDE Pre-Mounted F104 Rear Slick Tire/R1 High Grip (TITC 2013 Formula Class Contral Tire) #26023 |
USD$27.50 |
| 1 x |
Intellect Lipo Battery Pack 80C 7.4v 4600mah for 1/10 - 1/12 RC Car #IP-BG2S4600V8 |
USD$49.90 |
| 1 x |
RIDE Front F104 Slcik Tire/63mm/R1 High Grip (TITC 2013 Formula Class Contral Tire) #26022 |
USD$21.90 |
****
1/10 R/C Car Series No.431
Length: 410mm (Image shows assembled and painted model.) ※Click to enlarge
| 【 All New Direct Drive 】 This 1/10 scale assembly kit R/C car features a direct drive system which produces sharp handling response. The battery is placed in a new longitudinal position allowing for a slim body design to mimic the dimensions of today’s modern racing machines. The R/C units are positioned on either side of the battery for optimum balance to assists in producing the excellent handling performance. Suspension features a simple and proven 3-point system. Front upper arms are connected to uprights with ball connectors, and the front ground clearance can be easily adjusted by altering the spacer positions. Rear suspension features the combination of carbon friction plates, a FRP T-bar, and a TRF damper. In matching its name “PRO”, other high-spec parts such as carbon upper & lower decks, aluminum diff housing, and a carbon rear shaft are included to take you to the next level of R/C excitement. |
| 【 For the Realism 】 The realistic polycarbonate body features separated side pontoon parts to depict the shaved side edges seen on modern racing cars. Also features 3-dimensional front and rear wings, rear diffuser, side mirrors, and aerofoil suspension arms for enhanced realism. The lightweight sponge tires offer excellent gripping power and are mounted on large diameter wheels which have ribbed rims to make it look smaller for great scale realism. |
The upper arm is connected to an upright with ball connector. By reorganizing the upper arm attachment holes, the camber angle can be adjusted. Also, ground clearance can also be adjusted by switching spacer positions. |
 |
High precision aluminum diff housing provides a smooth power transmission and holds the housing together allowing for an easy wheel change. |
|
《How to change battery pack》
Detach the battery stopper at rear of the servo, then rotate R/C unit trays which are located both sides and pull battery pack to remove. |
| 【 Specifications 】 ●Length: 410mm ●Width: 180mm ●Wheelbase: 270mm ●Tread: 150mm (Front), 145mm (Rear) ●Tire Width/Diameter: 30/44mm (Front), 35/44mm (Rear) ●Carbon lower and upper decks ●Horizontally mounted motor rear direct drive 2WD ●Ball differential ●Symmetrical steering tie rods ●Suspension: Kingpin coil spring (Front), T-bar rigid (Rear) ●Gear ratio＝4.16:1 (when used with 25T pinion and 104T spur gears) ●540 Type motor ●Requires Electronic Speed Controller (Sold Separately). |
【 Separately Required Items 】 ●2-channel R/C unit with ESC ●Tamiya Battery Pack and charger ●8xR6/AA/UM3 batteries for transmitter
|
